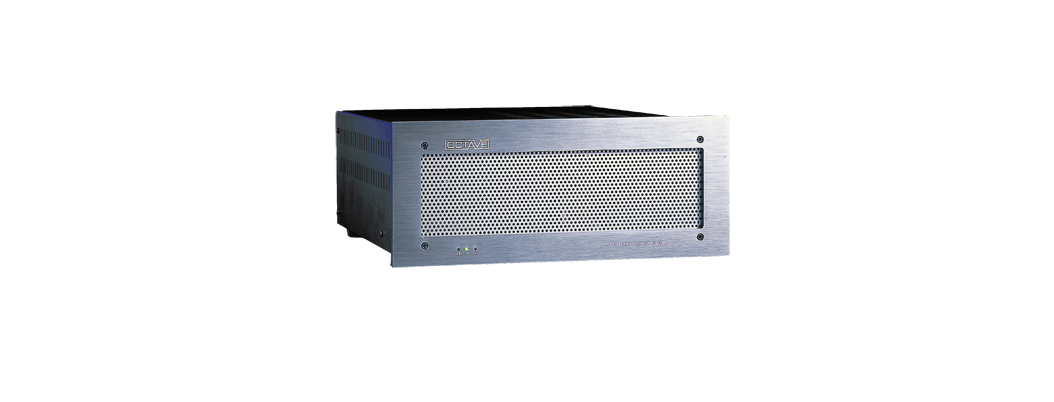

Mono power amplifiers M 100

Product duration: 1997 - 2000



Available colors: Silver or Black

The power amplifier of the tube mono power amplifier M 100 is a further development of the power amplifier of the V 50 integrated amplifier. In this power amplifier concept, a new phase shifter concept is used to eliminate the system-related disadvantages of classic push-pull power amplifiers. The DC-coupled phase shifter is constant up to approx. 4 MHz and does not affect the overall behavior of the power amplifier in any way. Due to the phase consistency of the output stage, stability is now achieved even with complex loads, which is unique for tube output stages. The behavior in the limit areas of the transmission range (low bass, high frequency) is now constant. Damping and distortion factors are largely independent of frequency.

Add On Modules

Super Black Box

The Super Black Box is a passive power supply extension designed for all Octave integrated and power amplifiers. Due to the massively increased storage capacity of the power supply, the pulse power of the power amplifiers is significantly increased. What is also very important is the increased independence from the electrical load - the loudspeaker. A big sonic benefit, not just for sophisticated speakers.

Black Box

The Black Box is a smaller version of the Super Black Box with the same concept. It contains a circuit with electrolytic capacitors that increases the internal power supply of the amplifier and stabilizes it against mains fluctuations. Low-frequency network interference is perfectly suppressed. The black box has its own housing and is permanently connected to the amplifier using a special high-current connector.
